Oregon Blue Unmanned Blue Echelon 8
Forged for the Field. Engineered for Your Mission.
Blue Echelon 8
An American-made, heavy-lift drone platform built for unparalleled modularity and mission-critical reliability. FAA and NDAA compliant

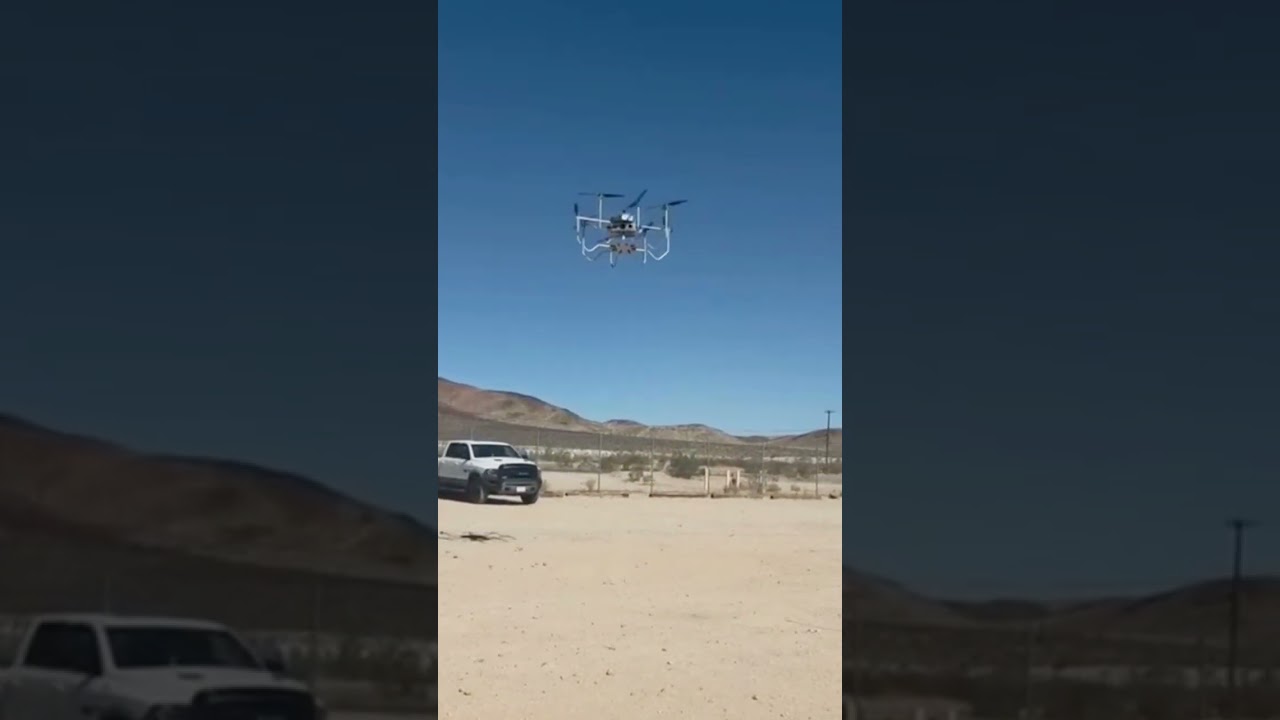

For additional flight videos and updates,
check out the OBU Youtube!
Technical Specs
The Blue Echelon 8: Heavy-Lifting, Infinitely Adaptable.

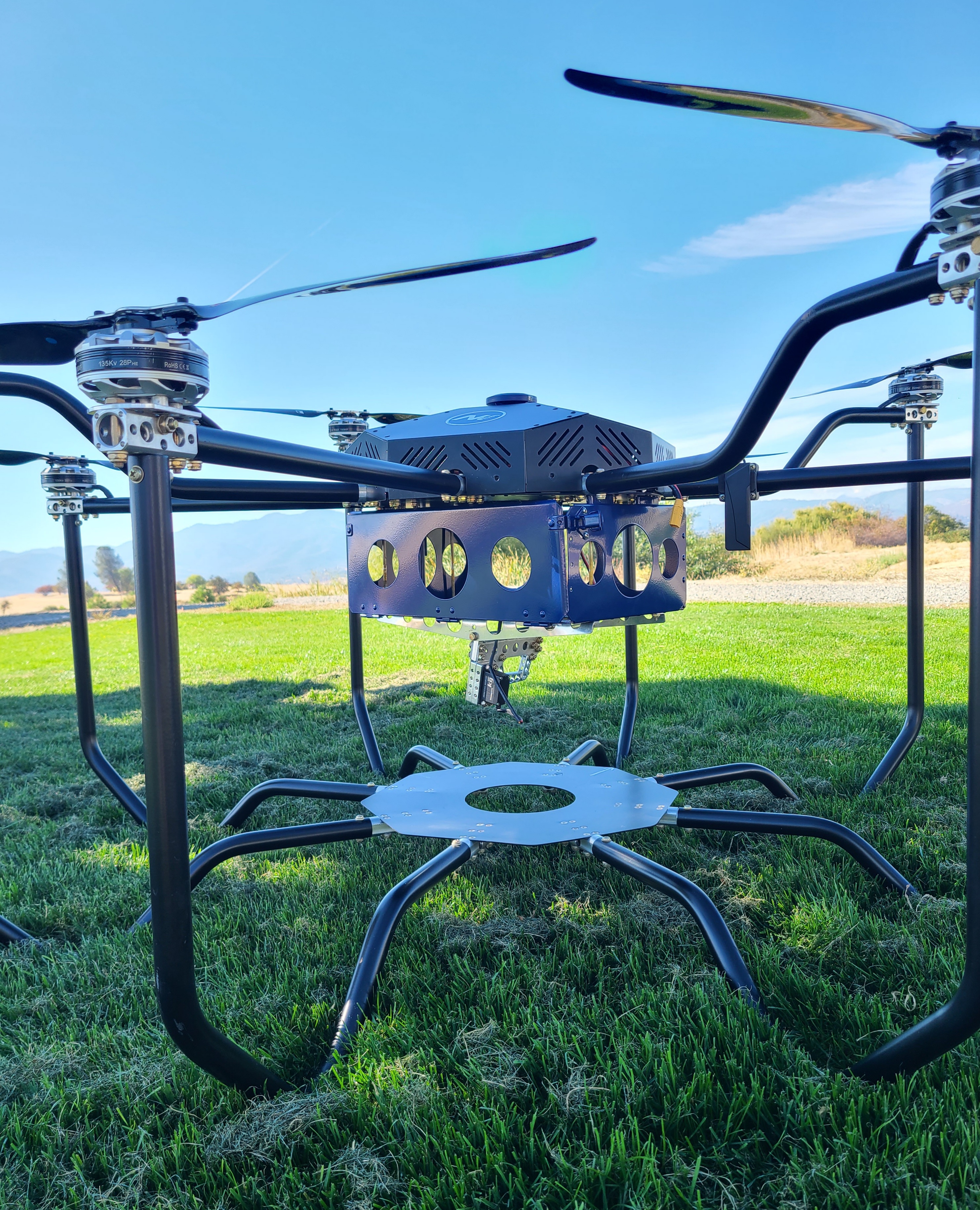

Discover the power of aerial utility with the Blue Echelon 8, an American-manufactured octocopter engineered for demanding heavy-lift operations. Designed and built in Oregon, USA, the Echelon 8 is your reliable "Air Tractor" – a versatile platform constructed with 100% American 6061T6 aircraft aluminum and FAA mil-spec compliant hardware for outstanding strength and durability.
Engineered for Performance & Versatility: The Blue Echelon 8 features an open central bay for rapid integration of external payloads and specialized equipment. Its adaptability means it can seamlessly accommodate custom payloads weighing 60 lbs or less, empowering you to complete diverse missions with confidence.
Manufactured in Oregon, USA
Discover the power of aerial utility with the Blue Echelon 8, an American-manufactured octocopter engineered for demanding heavy-lift operations. Designed and built in Oregon, USA, the Echelon 8 is your reliable "Air Tractor" – a versatile platform constructed with 100% American 6061T6 aircraft aluminum and FAA mil-spec compliant hardware for outstanding strength and durability.
Engineered for Performance & Versatility: The Blue Echelon 8 features an open central bay for rapid integration of external payloads and specialized equipment. Its adaptability means it can seamlessly accommodate custom payloads weighing 60 lbs or less, empowering you to complete diverse missions with confidence.
Manufactured in Oregon, USA
Key Capabilities:
- Exceptional Heavy-Lift: Built to handle payloads up to 60 lbs with ease, ready for your toughest aerial tasks.
- Intelligent Power Management: Equipped with a specialized Mauch Power Systems electronics suite, including PL-200 Sensor Boards and a PL Sensor Hub X2-V2, the Echelon 8 continuously monitors high voltage and amperage. This intelligent system enables precise power decisions, protecting motors and components even under significant loads.
- Modular Design: Designed with robust, easily interchangeable subassemblies, allowing for efficient upgrades or component replacements when customizing your drone.
- Precision Control & Stability: Features the advanced CubePilot Cube Blue autopilot, Here4 Blue RTK-capable GNSS for highly accurate positioning down to centimeter-level for precise altimetry. It provides command altitude precision of +/- 3cm.
- Optimized Performance for Your Needs: We provide custom PID tuning for various payload types and weight distributions, ensuring optimal flight characteristics whether you're carrying a compact load at the base or dangling equipment from a long line. When correctly assembled, your Blue Echelon 8 is guaranteed to fly.
- Reliable Propulsion: Powered by high-performance KDE Direct motors, KDE ESCs, and KDE double folding propellers, ensuring consistent and efficient thrust for sustained operations. Motors, ESCs, and props can all be adjusted to meet your mission needs!
- Rapid Deployment: Designed for quick relaunch with battery changes capable in less than 60 seconds.
- Durable for Operational Conditions: Operates effectively in winds up to 30 knots, mild rain and snow, and temperatures ranging from 20-100 degrees F. Features IP55 ingress protection against dust and low-pressure water jets.
Oregon Built
-Air Frame - 100% American Aircraft Aluminum
-All Hardware FAA Mil Spec Compliant
-Frame Is 100% American 6061T6 Aircraft Aluminum
-Spray Gear/Belly Hook/Long Line Hooks
-KDE Motors/ESCs/Propellers - Bend, OR
-Blue Herelink - Portland, OR
-Blue Here 4 GPS
-Blue Cube Pilot
Each Blue Echelon 8 includes:
- 1x - Air Frame (American 6061T6 aircraft aluminum)
- 1x - Herelink Blue v1.1 System (Integrated Controller & Air Unit)
- 8x - KDE Motors
- 8x - KDE Double Folding Propellers
- 8x - KDE ESCs
- 1x - CubePilot Cube Blue Autopilot
- 1x - CubePilot Here4 Blue GNSS Module
- 1x - Cargo Hook Module
- Comprehensive Hardware (FAA Mil-Spec compliant fasteners)
- Complete Power System Components (Mauch modules, distribution boards, wiring harnesses)
- All Essential Wiring & Connectors
OBU Cargo Hook
Precision Payload Delivery, Universally Compatible
Elevate your drone's utility with the Oregon Blue Unmanned Cargo Hook, an American-made, heavy-duty solution for precision aerial delivery and suspension. Manufactured in Oregon, USA, this robust cargo hook is constructed from American 6061 T6 aircraft aluminum and features Military Standard aircraft hardware, ensuring uncompromising strength and reliability in the field.
Designed as a pivotal modular component, our Cargo Hook allows your drone to suspend and precisely release equipment, offering enhanced versatility for specialized operations.
Designed as a pivotal modular component, our Cargo Hook allows your drone to suspend and precisely release equipment, offering enhanced versatility for specialized operations.
Innovative Release & Stabilization
- Fail-Safe Latching Mechanism: The OBU-0731 features a uniquely engineered latch. As the servo moves out of its path, the weight of the payload itself pulls the latch open, ensuring the item drops cleanly without fail. Once released, the latch automatically balances and resets itself back into position, ready for the next operation. Its design eliminates snag points, preventing any unintended hold-ups.
- Horizontal Stability System: The top of the hook incorporates two precisely positioned eye holes. This allows a string or line to be woven through completely, uniquely balancing the hook horizontally. This design prevents unwanted spinning or rotation of the payload during flight, maintaining stable delivery.
- Unmatched Compatibility & Performance: The OBU-0731 Cargo Hook is driven by a powerful 50kg digital servo, capable of securely handling payloads up to 75 lbs.. Its wide operating voltage range of 7 to 14 volts ensures seamless integration across a variety of drone power systems.
- Open-Source Ready Integration: Experience true plug-and-play adaptability. The Oregon Blue Unmanned Cargo Hook is designed for universal integration, requiring only a standard PWM (Pulse-Width Modulation) output to control its servo. This signal is typically provided via an auxiliary (AUX) port on your flight controller, allowing the hook to be triggered by virtually any controller that can send a simple high/low signal to set the servo's position. This open design ensures flexibility and ease of use with your existing drone ecosystem.
- Lightweight, Yet Indispensable: Weighing a mere 257g, this essential accessory features a clever perforated aluminum design that minimizes weight while maximizing structural integrity. It adds minimal mass, transforming your drone into a precision delivery platform.
